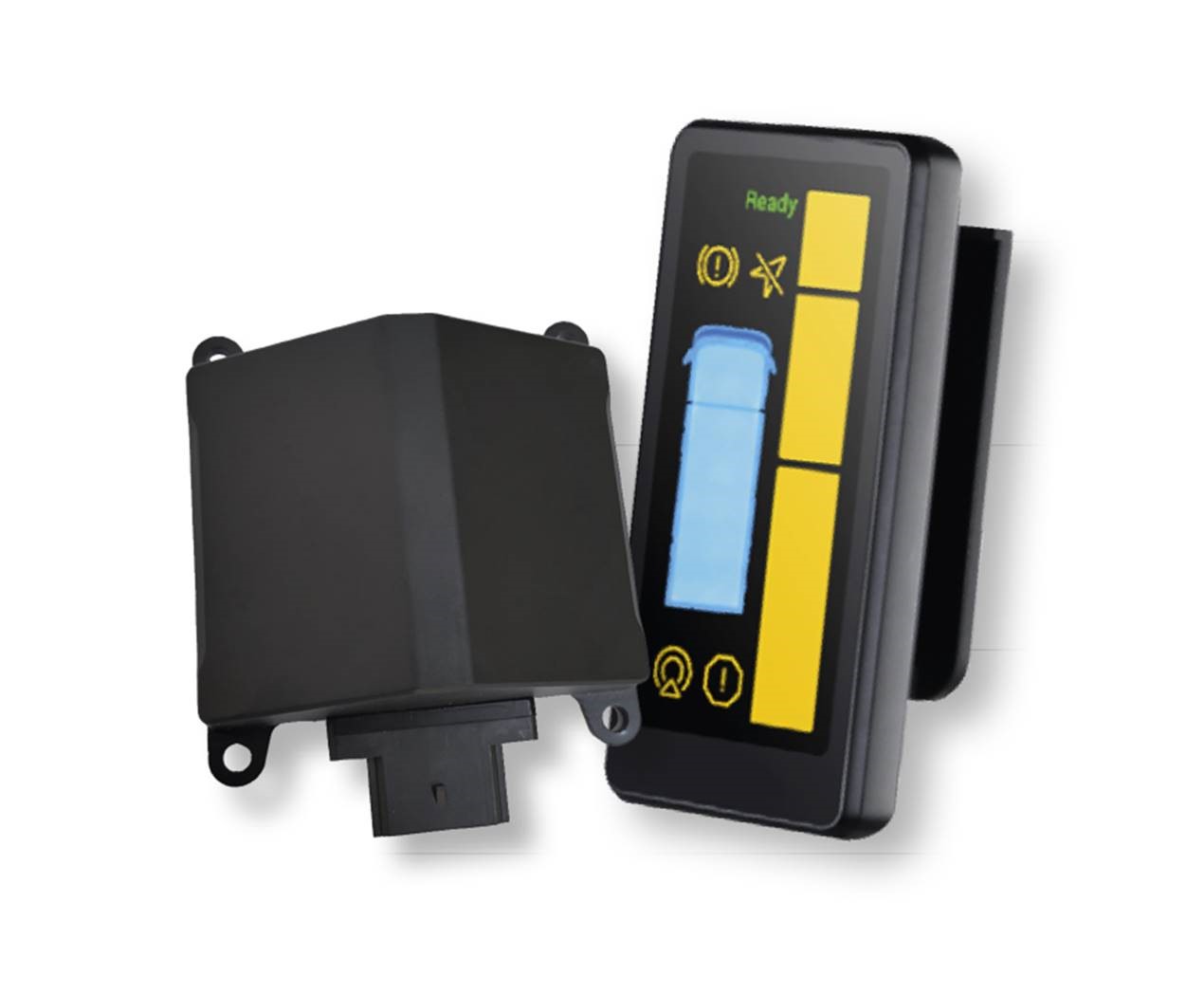

Turn Assist AAS BSIS 151
The AAS BSIS 151 turn assist based on radar, (77GHz), has been developed for object detection for large commercial vehicles.
It warns interactively, both visually and acoustically. The AAS BSIS 151 is able to distinguish between motor vehicles and non-motor vehicles.
It has a maximum detection area of 80 x 7 meters, to the right of the vehicle. It has the largest detection angle of 180° without blind spots.
| Technical data of the sensor | |
|---|---|
| Frequency range | 76 - 77 GHz |
| Detection range | 80 m x 7 m |
| Detection range | 70 m x 4.5 m |
| Warning zone | 37 m x 4.5 m |
| Horizontal angle | 180° |
| Dimensions | 115 x 9.5 x 41 mm (W x H x D) |
| Weight | 230 g |
| Performance | 7 W |
| Voltage | 8 - 32 V |
| Temperature range | - 40° C to +85°C |
| Safety class | IP 69 K |
| Vibration resistance | 50 G |
| Item number | Product Description |
|---|---|
| 842008 | BSIS 151, 8 meters |
| Item number | Product Description |
|---|---|
| 852001 | BSIS 151 Universal brackets |
| 852002 | BSIS 151 Individual brackets |
| 852100 | BSIS 151 Cover |
