MEKRA CMOS AHD Camera system for Person detection

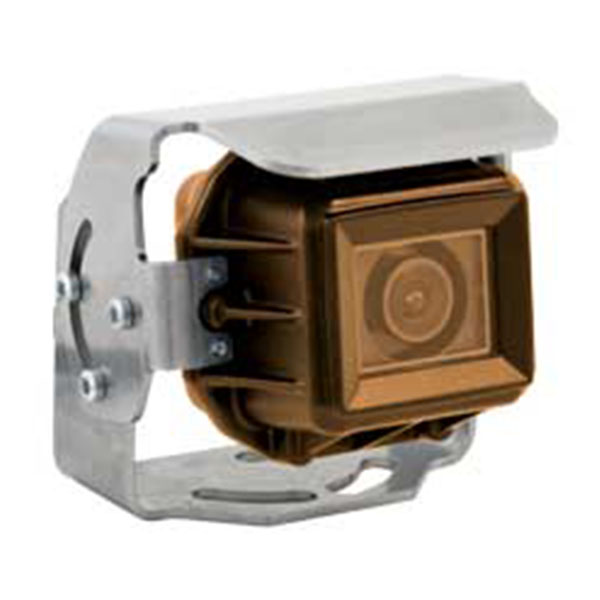

The MEKRA CMOS AHD camera for people detection provides HD images (1080P) and has the same proven robust housing as the MEKRA CMOS 1301 series.
A die-cast aluminium housing combined with a special seal and encapsulated connection cable guarantee that the camera is completely sealed in accordance with protection class IP 69K. This makes the camera suitable for permanent submersion and for cleaning with high-pressure/steam jet cleaners.

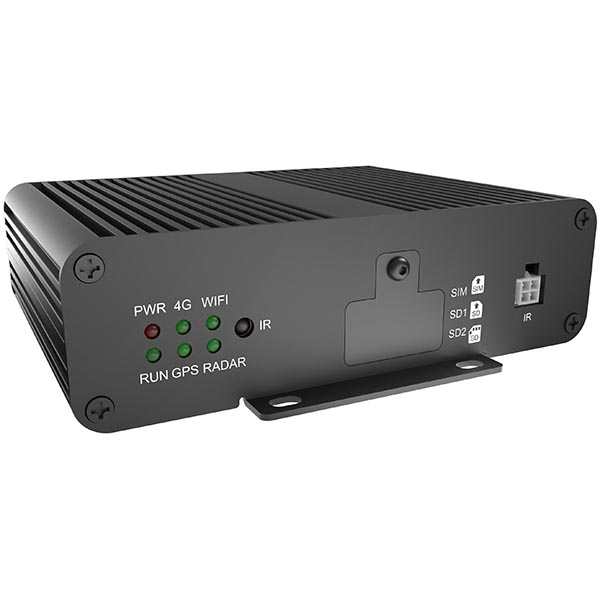

In conjunction with the 4-channel ADA ECU, the system is able to recognise people and vehicles in a defined area and actively warns the driver.
The camera system with person recognition is an assistance system (ADAS) and supports the operator in his work, but the operator is still responsible in accordance with his employer's work instructions.
Components of the system
Features and Highlights of the system
IP 69K
Designed for rough conditions, the camera is resistant to high-pressure cleaners according to IP 69K

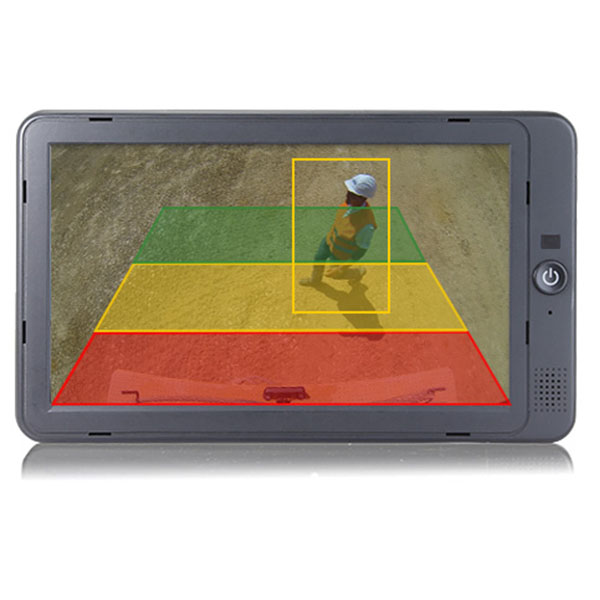

Configuration via Toucmonitor
The System can be configured via Touchmonitor.
Detection Range
The detection range of the camera is adjustable between 0.5 and 10m and can thus be adjusted perfectly to the respective requirements.
HD Quality Images
The person detecting camera images the areas around the vehicle in HD quality and reacts in less than 200ms even in the most varied lighting conditions.
Artificial Intelligence
The AI camera detects pedestrians and vehicles in real time and warns the driver acoustically and visually. This active support improves awareness of the vehicle's surroundings, which can prevent collisions.
